Export Packing

We pursue the best packaging service with the goal of maximizing customer satisfaction and customer first

Packing Overview

Packing definition
이미지
It refers to a technology that protects the value and condition of products from the outside or the environment by using appropriate materials (wood, anti-rust film, anti-vibration film, aluminum sheet, etc.) in transporting and storing equipment or products.
Packaged item
  • 이미지
    • Domestic and export goods
    • Semiconductors and LCD/PDP manufacturing equipment and other precision machines
    • Flant structure and all kinds of the raw materials, and the subsidiary materials
    • Exhibition equipment and exhibits (Medical equipment, semiconductors, automobiles, artworks, ceramics, etc.)
    • Industry, construction equipment and various machines
    • Other Client-requested products
Service except for packing
  • 이미지
    • A wooden box and Carton Box business trip
    • Design of Logistics (Transport/Export Agent) and packing
    • Storage and management of incoming goods (warehouse business)
Selection of wooden box material
  • Timber material
    Timber material
    Chile song, New song, and cattle song, and it is the principle to make it as an imported new song.
  • Plywood material
    Plywood material
    There are Malaysia, Indonesia, China, and domestic products, and more than refined products made in China are used.
  • Bolts and Nuts
    Bolts and Nuts
    We use the best domestic products.
  • Nail
    Nail
    We use the best domestic products.
  • 이미지
    Angular iron and triangular iron
    Color - In principle, it is black-coloured, but it can be changed according to the client's request. Steel plate thickness - over 1mm / Width – over 50mm / Size – over 90mm For material specifications - standard materials calculated by the mechanical structure and volume calculation should be used in consideration of product specifications, shape, weight, transportation, unloading, and destination.
Sub-materials in packing
  • Vacuum packing paper
  • Vacuum packing paper
    After inserting SILICAGEL into the product to be vacuum-packed and wrapping the product according to my packing method, it packs with the silver foil bag made according to the product in order to prevent heat, it pulls out the air to inhaler and it attaches to sealer so that the moisture does not enter from outside.(At this time, the silver foil uses the thick thing over T-0.15m / m to prevent the heat.)
    # The nitrogen (N2) background putting into in the vacuum packing
    In the early 1990s, Daewoo Motors started to build a car factory all over the world, calling for world management. While advancing to locations on the other side of the globe, such as Eastern Europe, the automobile factory relocation was promoted, and precision robots for assembly were shipped in vacuum wooden packing. Faced with the difficulty of continuing to send expensive equipment, as a minimum reserve measure, oxygen (O2) and nitrogen (N2) do not mix with each other, so the air is evacuated from the vacuum bag and nitrogen (N2) is put in and shipped.

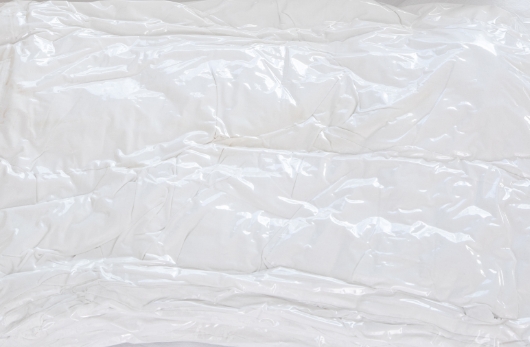

  • Anti-rust film
  • Anti-rust film (Waterproof, moisture-proof packing)
    In order to prevent the wet water phenomenon, P.E Film and waterproof paper are adhered and P.E Film and waterproof paper attach are excluded according to product.
  • Toilon
  • Toilon (shock, mothproofing packing)
    In order not to damage the product, and to prevent vibration and thermal effect inside the box, the product is stacked with Totilon, and then bolts are fixed on the bottom to prevent vibration rolling and damage to the product due to impact during transportation and unloading. It should be fixed so that it does not move by using a wooden beam up and down.
  • Inhibited oil
  • Inhibited oil (rust-proof packing)
    Machines to prevent rust should be applied with rustproof oil or grease after removing dust and other secretions, and steelproof film should be used for products.
  • Silica gel
  • Silica gel
    The effect of Silica gel is to remove moisture generated from air contained in the packing, moisture generated from the air (when the air is filled for shock mitigation), moisture penetrating from the external packing during transportation or storage, etc.
    # When special attention is required
    The case that the temperature difference between night and day shows a change of 20 to 30 degrees.
    In case of large seasonal temperature difference.
Shipping Mark
  • Shipping Mark
  • It is printed on the front and back with black permanent ink, and the size is adjusted according to the size of the box.
Material selection for the wooden box

※ CAUTION MARK is marked with high-quality waterproof ink or red oil paint to mark the END PANEL & SIDE PANEL.

  • FRAGIL

    FRAGIL

    Marks that direct the fragile cargo to avoid impact
  • HEAVY WEIGHT THIS END

    HEAVY WEIGHT THIS END

    A mark indicating the heavy side of the centered cargo
  • KEEP DRY

    KEEP DRY

    Mark to instruct not to get wet
  • DO NOT DROP

    DO NOT DROP

    Marks that indicate what is an easy-to-fall cargo
  • THIS SIDE UP

    THIS SIDE UP

    A mark indicating the direction of the top and bottom of the cargo
  • CENTER OF BALANCE

    CENTER OF BALANCE

    A mark indicating the position where the weight of the cargo is balanced
  • USE NO HOOK

    USE NO HOOK

    A mark instructing not to use a hook to make a hole
  • REQURING WAREHOUSING

    REQURING WAREHOUSING

    Warehouse storage mark
  • SLING HERE

    SLING HERE

    A mark indicating the position of lifting
  • DANGER OF IGNITION

    DANGER OF IGNITION

    Fire caution mark
